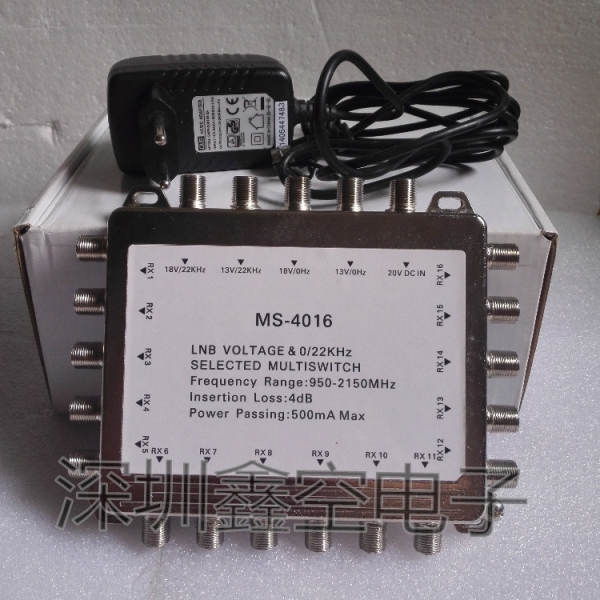

Jasen 4x116 13V/18V voltage 0/22KHz selected 4 in 16 out Satellite V/H LNB multiswitch MS-4016
Frequency range: 950-2150 (MHz)
Output power level: 95 (dBuV)
Insertion loss: 5 (DB)
Normal working voltage: 12-20 (V)
Mutual isolation of output ports: 25 (DB)
Working consumption current: 40 (MA)
Input switch isolation: 28 (DB)
Passing current: 500 (MA)
Input reflection loss: 12 (DB)
DC power supply: 20V (± 1) 700mA
Output reflection loss: 8 (DB)
Port impedance: 75 Ω
Control switching voltage / signal: 13 / 18V, 0 / 22khz
