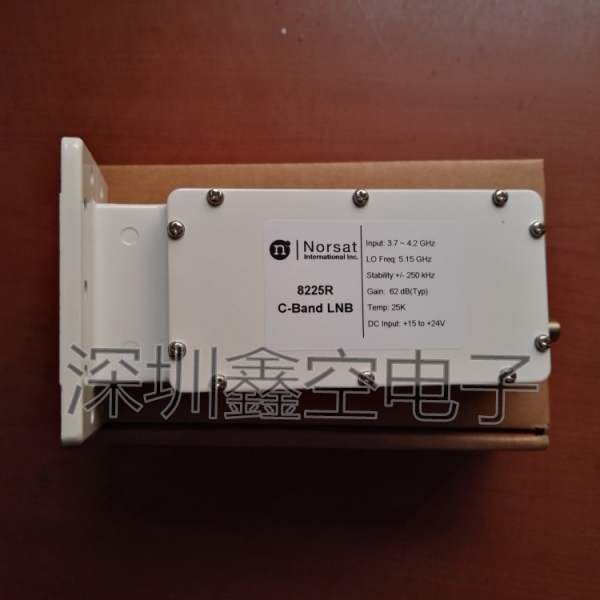

Product Name: NuoSaiTe 8225R Anti disturbance High Frequency Head

Product model: Norsat-8225R

Product features: NORAT-8225R C-BAND DRO LNB is a professional high-frequency head for broadcasting and television. It has been used for a long time in various TV stations and monitoring stations in China, and its stability is at the international leading level, fully satisfying the needs of signal acceptance in broadcasting, television and communication.

The design of the Norsat DRO 8225R anti-interference high-frequency head is to provide commercial quality VSAT and select digital applications, which can filter out ground wave disturbances such as airport radar

Technical data:

Input Frequency 3.7 to 4.2 GHz

Local oscillator frequency L O. Frequency 5.15 GHz

Output frequency 950 to 1450 MHz

Noise Temperature 25 ° K

Local oscillator stability: ± 250KHz

Phase Noise (SSB)

@1kHz -70 dBc/Hz

@10kHz -90 dBc/Hz

@100kHz 100 dBc/Hz

Input VSWR 2.0:1

Output VSWR 2.2:1

Conversion gain 62 dB

Output P1dB 8 dBm

Power requirements for homework voltage+15 to+24 V le

Current drain 130 mA

Waveguide Interface Input Waveguide CPR229G

Output impedance Connector Type F female 75 ohms

External dimensions: (L x W x H) 180 x 100 x 70 mm

Weight: 425 g/15 oz
