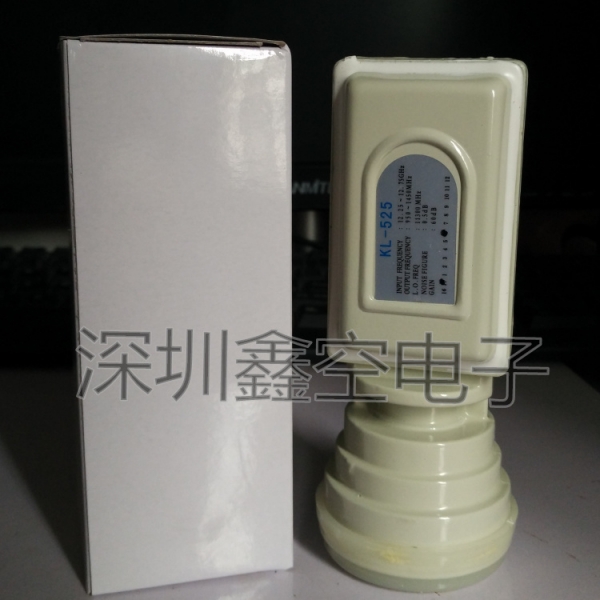

KL-525 Ku Band Digital Single LNB with The L.O. Frequency 11.3GHz
KL525 (new model) adopts the latest components to design the circuit more reasonably, improving overall performance
Improved. The cover plate is glued with high-strength sealant, which has better waterproof performance
Technical specifications of Ku Band satellite frequency reducer KL525 (new):
Features:
Input frequency: 12.25-12.75GHz
Output frequency: 950-1450MHz
Local oscillator frequency: 11300MHz
Local oscillator accuracy: ± 1 MHz
Noise coefficient: 0.5dB
Gain: 60dB
DC power supply: 10-20vdc/160mA
Output standing wave ratio coefficient: 2:1
Joint type: F-type
Working temperature: -40-+60 ℃
Vertical polarization voltage: 11-14.5V
Horizontal pole voltage: 16-20V
