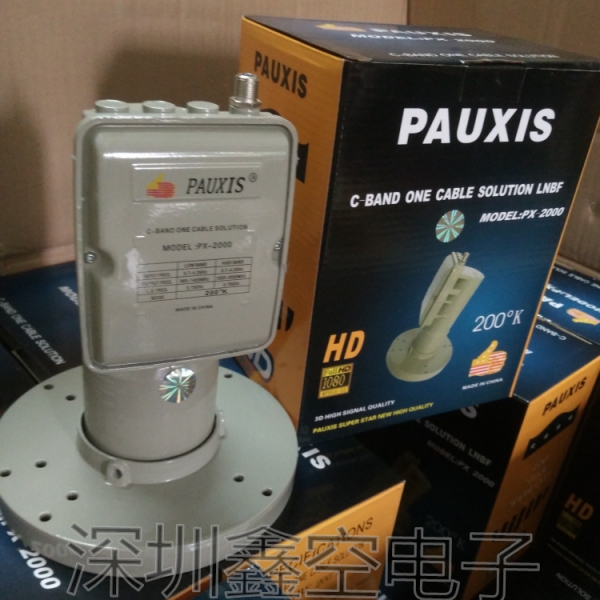

PAUXIS px-2000 C-Band LNB
Suitable for engineering specific large pot frequency reducer high-frequency head
PX-2000 dual polarization, dual local oscillator, C-band high-frequency head PAUXIS·
Puss brand C-band high-frequency head is an American brand that has been highly recognized by users for its good quality, high reputation, stable performance, and affordable price for many years. It is widely recognized by audiophiles.
Detailed introduction
Input Frnq.: 3.7-4.2GHz
Output Frnq.: 950-1450MHz
MHz L.O: H: 5150MHz V: 5750MHz
Noise Figure: 17 ° K
Instructions for use:
puss PX-2000 dual local oscillator single channel signal output, output frequency of 3.7-4.2GHz, dual local oscillator: 5.15GHz and 5.75GHz, C-Band dual polarization dual local oscillator single output satellite high-frequency head without voltage switching.
Local oscillator 05150 corresponds to the reception of horizontally polarized programs, and 05750 corresponds to the reception of vertically polarized programs.
The installation method is the same as the current dual local oscillator high-frequency head, but please note that the "0" mark on the high-frequency head is parallel to the horizontal plane.
Puss PX-2000 high-frequency head
Dual local oscillator single output high-frequency head, integrating horizontal and vertical polarization reception functions,
It has a single independent output port, which outputs a primary signal. The vertical and horizontal signals do not affect each other and are used to receive C-band signals,
Rotatable polarization angle adjustment, easy and fast installation;
It has ultra-low noise temperature and ultra-low phase noise, fully meeting the reception signal of MPEG-2/DVB satellite digital compressed TV programs.
Its design is perfect, with stable and reliable performance,
And it has good isolation characteristics, making it a convenient choice for receiving satellite TV in television engineering.
Dual local oscillator is suitable for multiple households and receivers using one antenna simultaneously.
PX-1200 high-frequency heads can be replaced with PX-2000 instead of a box of 30,
6-pole amplification, low noise, anti-interference, strong signal, external single cargo
The level of 5G interference resistant high-frequency head is the Puss PX-2002
