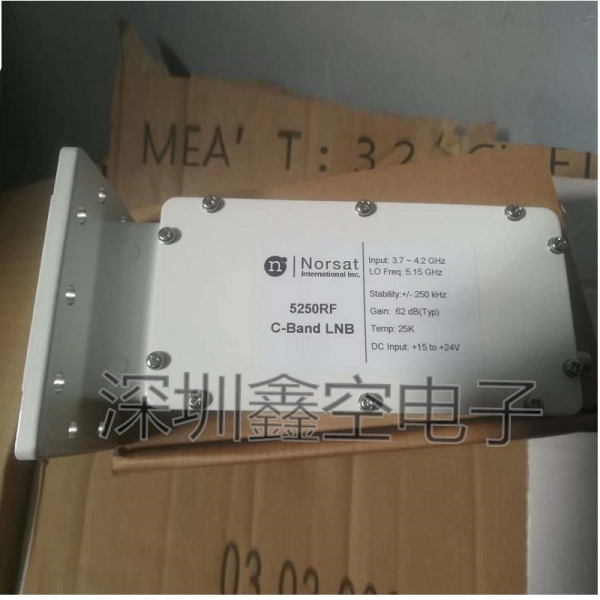

Norsat 5250RF C-Band LNB
Product model:Norsat-5250RF
The Norsat-5250R, C-Band PLL LNB is a professional phase-locked loop satellite high-frequency head for broadcasting and television. It has been used for a long time in various TV stations and monitoring stations in China, and its stability is at the international leading level, fully satisfying the needs of signal acceptance in broadcasting, television, satellite communication, and other fields.
Product technical data:Product series |
5000 series |
Local oscillator type | PLL phase-locked loop |
Local oscillator stability | +/- 250 kHz |
Noise temperature | 15 K. |
Input frequency | C:3.70 - 4.20 GHz |
output frequency | L:950 - 1450 MHz |
| |
RF specifications | 5.15 GHz |
Phase noise @ 1KHz offset | -65 dBc / Hz |
Phase noise @ 10KHz offset | -80 dBc / Hz |
Phase noise @ 100KHz offset | -95 dBc / Hz |
nominal gain | 62 dBTypical value |
inputVSWR | 2.5:1 |
outputVSWR | 2.5:1 |
Output 1dB compression point power | 5 dBm |
| |
Electrical specifications | |
working voltage | 12 - 24 V |
Working current | 250毫安 |
| |
Interface specifications | |
RF input connector | CPR 229GWaveguide groove |
RF output connector | N-50Ohms |
| |
Environmental indicators | |
Temperature - Operation | -40`+ 60°C |
humidity | 0 - 95% |
| |
Physical specifications | |
Dimensions (length x width x height) | 190 x 115 x 78mm |
weight | 580g |
