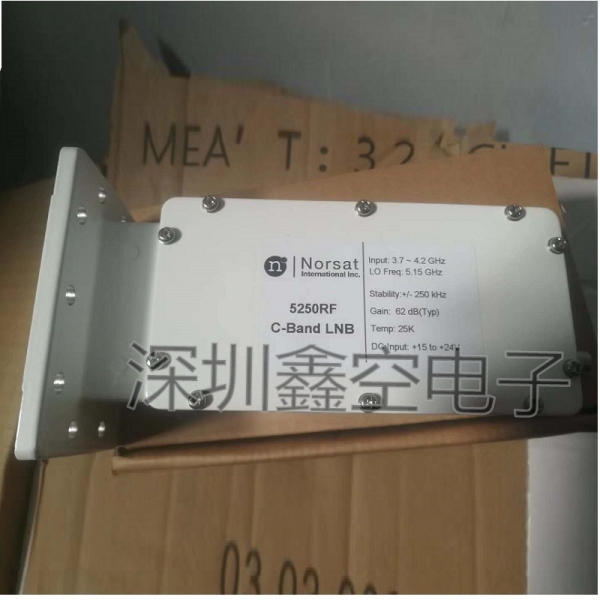

Product Name：C-Band PLL LNB ,

Product model：Norsat-5250RF

Product Overview：

 Norsat-5250R, C-Band PLL LNB is a dedicated phase-locked loop satellite high-frequency head for the broadcasting and television industry, used in various TV stations and monitoring stations in China

The station is used for a long time and its stability is at the international leading level, fully meeting the needs of signal reception such as broadcasting, television, satellite communication, etc.

The design of the Norsat-5250R, C-Band PLL LNB anti-interference satellite high-frequency head is to provide commercial quality VSAT and

By selecting digital applications, slight interference from 5G communication base station signals to satellite earth stations and ground wave interference from airport radars can be filtered out

Product series	5000series
Local oscillator type	PLL Phase-locked loop
Local oscillator stability	+/- 250 kHz
Noise temperature	15 K.
Input frequency	3.70 - 4.20 GHz
output frequency	950 - 1450 MHz
RF specifications
Local oscillator frequency	5.15 GHz
Phase noise @ 1KHz offset	-65 dBc / Hz
Phase noise @ 10KHz offset	-80 dBc / Hz
Phase noise @ 100KHz offset	-95 dBc / Hz
nominal gain	62 dB Typical value
Input VSWR	2.5：1
Output VSWR	2.5：1
Output 1dB compression point power	5 dBm
Electrical specifications
working voltage	12 - 24 V
Working current	250mA
Interface specifications
RF input connector	CPR 229G waveguide slot
RF output connector	N-50 ohms
Environmental indicators
Temperature - Operation	-40~+ 60°C
humidity	0 - 95％
Physical specifications
Dimensions (length x width x height)	190 x 115 x 78mm
weight	580g
