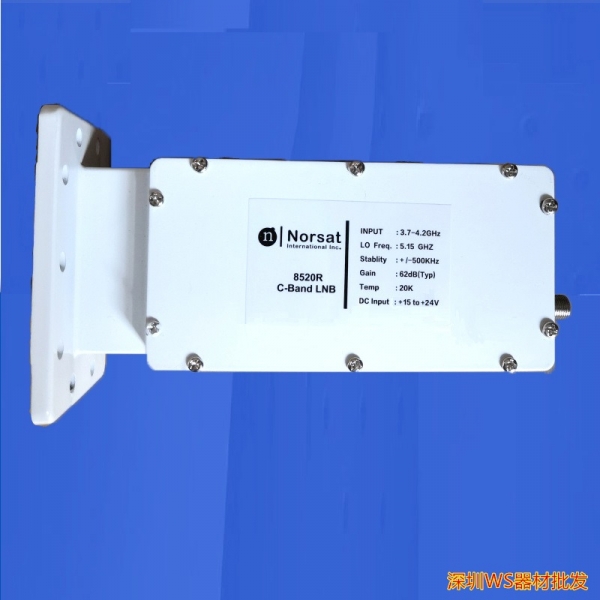

NORSAT 8520R LNB, narrowband anti-interference BAND
Product model: Norsat-85205R
Product features: NORAT-8520R C-BAND DRO LNB is a specialized satellite high-frequency head for the broadcasting and television industry. It has been used for a long time in various TV stations and monitoring stations in China, and its stability is at the international level, fully meeting the needs of signal reception in broadcasting, television, satellite communication, and other fields.
The design of the Norsat DRO 8520R anti-interference satellite high-frequency head is to provide commercial quality VSAT and select digital applications, which can filter out ground wave interference such as airport radar
Technical data:
Input Frequency :3.7 to 4.2 GHz
ocal oscillator frequency L O. Frequency :5.15 GHz
Output frequency: 950 to 1450 MHz
Noise Temperature: 25 ° K
Local oscillator stability: ± 250KHz
Phase Noise (SSB):
@1kHz -70 dBc/Hz
@10kHz -90 dBc/Hz
@100kHz 100 dBc/Hz
Input VSWR: 2.0:1
Output VSWR :2.2:1
Conversion gain: 62 dB
Output P1dB :8 dBm
Working voltage Power requirements:+15 to+24 V le
Current drain: 130 mA
Waveguide Interface Input Waveguide:CPR229G
Output impedance Connector Type F female :75 ohms
External dimensions: (L x W x H): 180 x 100 x 70 mm
Weight: 425 g
