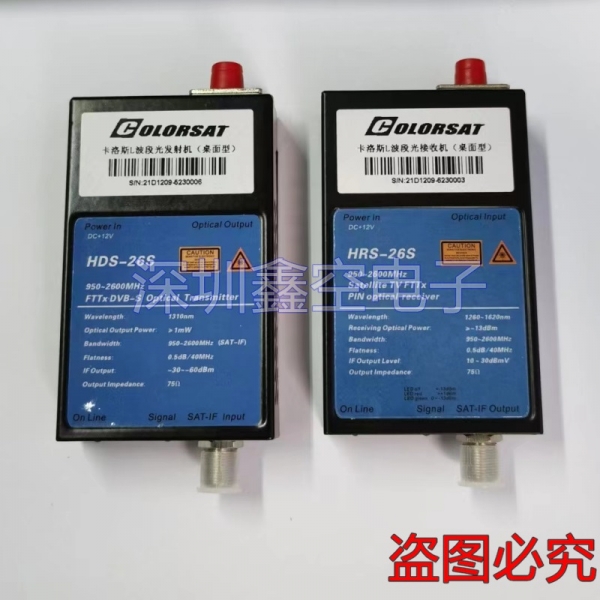

colorat L-band optical transceiver desktop satellite optical transmission equipment L-band optical transceiver
Desktop light generator (5 kilometers) 1730 yuan
Desktop optical receiver 780 yuan
Suitable for satellite light systems
Good linearity and flatness
Using single core single-mode fiber with high return loss
Built in CWDM, using highly sensitive photodetectors
6) Connect the output end to the 5-input series satellite multiplexer switch
Built in optical AGC function
Red LED power indicator
Small size, easy to install
Multiple specifications and shapes, suitable for transmitting signals from various antennas such as C-wave (large aperture antenna) and KU band (large aperture antenna),. It is the lowest cost solution in today's market.
Desktop, the industry's most miniaturized exterior size.
Aluminum alloy die casting, wall mounted.
Rainproof, convenient for outdoor installation.
The optical transmitter can provide 13VDC or 18VDC to LNB.
Radio frequency switches or optical switches can be selected to achieve automatic switching between the main and backup links.
Strong resistance to electromagnetic, radio frequency, and lightning interference.
The best performance to price ratio in the industry.
Main installation matters:
1. Suitable for KU band and C-band antenna high-frequency heads,
2. Single polarization transmission, with optional output for power supply of 12V and 18V
3. Single mode optical cable is required, with a transmission distance of 1-30 kilometers (depending on the power of the transmitter)
4. The dual polarization high-frequency head requires two sets of transmitters to be transmitted separately, and one set of machines can only transmit signals of one polarization method.
5. The feed line from the high-frequency head to the transmitter is kept at around 50, and excessive length affects the power supply of the high-frequency head.
