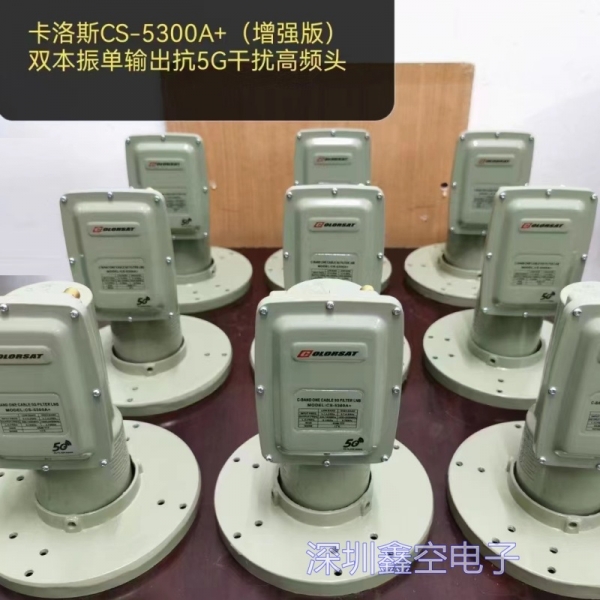

The technical parameters are as follows：
1.(Input Frequency):3.7 to 4.2 Ghz
2. (L.O. Frequency):5150/5750MHz(±500 MHz@25℃)
3. (Output Frequency)：950 to 1450MHz, 1550 to 2050MHz
4.(L.O. Leakage Input Port): 45dBm
5.(L.O. Stability): ±1.5MHz(-40℃to+70℃)
6.(Noise Figure)：17°K typ
7.(Conversion Gain)：>65dB typ
8.(Gain Flatness)：±1 dBm(max)
9. (Intput VSWR)：2.5:1(max)
10. (Output VSWR)：2.0:1(max)
11.(Output Connector):F-female Connector
12.(Output Impedance)：75Ω
13.(Cross Polar Isolation)：20dB(min)
14. (Image Rejection)：45 dB (min)
15. (Phase Noise)：-75dBc/Hz@10kHz(max)
16. (Supply Voltage)：
1)11.5-14.0v(Vertical Polarization) ,
2)16.0-19.0v(Horizontal Polarization)
17.(Operating Temperature)：-40℃to+70℃
18. (Storage Temperature)：-40℃to+80℃
19. (Relative Humidity)：0%-95%
