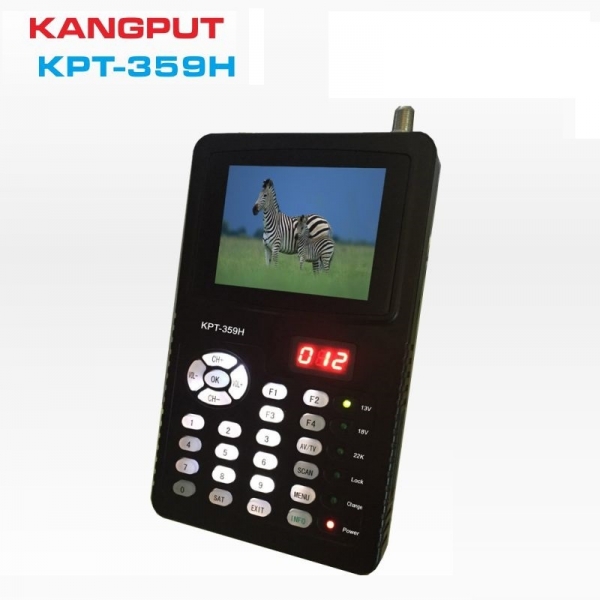

KPT-359H 3.5" LED Handheld Multifunctional HD Satellite Finder & Monitor（with TV & AHD &AV Input）

KPT-359H 3.5" LED Handheld Multifunctional HD Satellite Finder & Monitor（with TV & AHD &AV Input）

① Satellite TV Finder (DVB-S2)

②AHD input function.(HD Coaxial Camera Test)

③AV input function.(Monitor)

1.Satellite finder <DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+> .

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤Support Unicable system /  LNB feature

¤DiSEqC:1.0, 1.1 & Motor antenna: 1.2, USALS

¤Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

2. AHD Input: Test CCTV Camera

Automatic display of H AHD/TVI/CVI camera pixel

1.AHD:Support TVI AHD CVI camera 720P 960P 1080P 4K HD video input,display picture (Max: 8MP)

2.Analog CVB-S Video

3.AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio &DC12V power test

¤AV Input (Video&Audio Input Monitor)

¤3.5”high-resolution digital display LCD( LED Back Light)

¤Dots pixels:320*240 (230400Pixes）

¤Color system: PALNTSC

¤Battery indicator light show

¤Lithium battery: DC 11.1V  2200mAh(build-in)

¤Input voltage:DC13.5V  0.8A

Product Size :  181*110*40mm         500g
