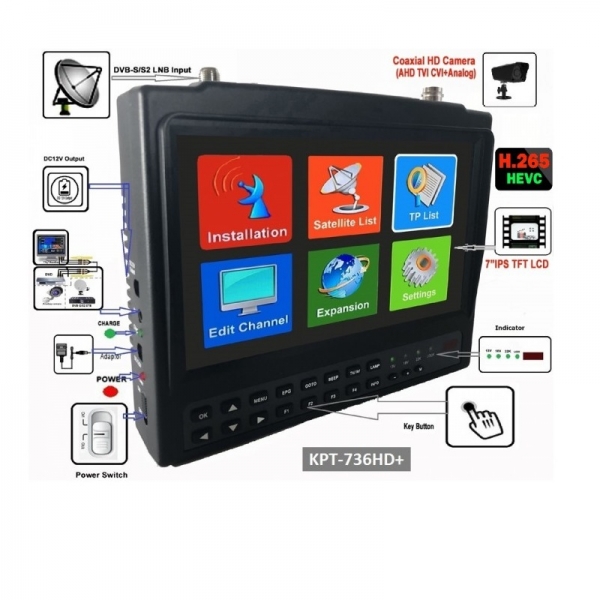

KPT-736 7" IPS Portable widescreen Satellite finder & HD Monitor（with TV& HD & AV Input）
① Satellite TV Finder (DVB-S2)
②HD input function.(HD Monitor)
③AV input function.(Monitor)
1.Satellite Finder (H.265) AVS/AVS+>
¤Frequency range:950MHz-2150MHz
¤LNB power & switch:13V18V/22K / signal lock indicator
¤Input impedance: 75Ώ (F). LNB short-circuit protection
¤DiSEqC:1.0, 1.1 & Motor antenna: 1.2, USALS
¤Build-in signal locked alarm
¤Build-in satellite finder management
Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc
2.HD Input:
Support 800*480 to Max 1920*1080 (Max:1080P)
3.AV Input:(on AV state;TV state is AV output)
¤Support Video & Audio &DC12V power test
¤AV Input (Video&Audio Input Monitor)
¤7"high-resolution digital display LCD( LED Back Light)
¤Dots pixels:1024*600(1843200Pixes)
¤Color system: PALNTSC
¤Battery indicator light show
¤Lithium battery:DC 11.1V 2600mAh(built-in)
¤Input voltage:DC13.5V 0.8
Product Size : 180*143*50mm 580g
