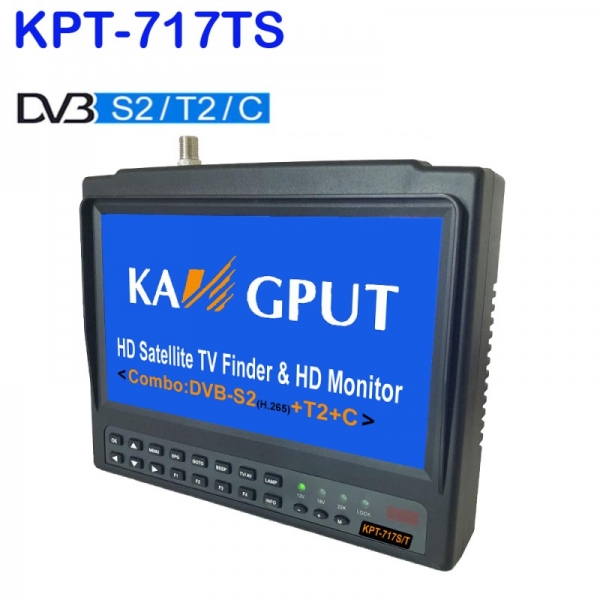

KPT-717S/T 7" IPS Portable Combo Satellite finder(S2+T2+C)& HD & CCTV Monitor（with TV+HD+AHD+AV Input）

KPT-717ST+AHD TS DVB-S2/T2/C Satellite TV Finder高清工程康普特寻星仪

①Combo Satellite TV Finder(DVB-S2/T2/C)

②HD input function.(HD Monitor)

③AHD input function.(HD Coaxial Camera Test)

④AV input function.(Monitor)

1. Combo Satellite finder

DVB-S/S2  < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤DiSEqC:1.0, 1.1, 1.2, USALS   Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

DVB-T/T2 :  <DVB-T and DVB-T2 standard>

Frequency range: VHF-H 174-230MHz, UHF 470-860MHz

Demodulation:QPSK, 16QAM, 64QAM,256QAM

Bandwidth:6、7、8MHz

DVB-C:  <DVB-C standard>

Frequency range: 115~858MHz ；

Symbol Rate(Kbps)：Modify according to local country information

Demodulation:16QAM, 32QAM, 64QAM,128QAM,256QAM

2.HD Input:  On HD Input state

Support 800*480 to Max 1920*1080 (Max:1080P)

3.AHD Input:  Test CCTV Camera <Automatic display of HD AHD/TVI/CVI camera pixel>

1.AHD:Support TVI AHD CVI camera 720P 960P 1080P HD video input,display picture (Max:8MP)

2.Analog CVB-S Video

4. AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio &DC12V power test

¤AV Input (Video&Audio Input Monitor)

¤7"IPS high-resolution digital display LCD( LED Back Light)

¤Dots pixels:1024*600(1843200Pixes)

¤Color system: PALNTSC

¤Lithium battery:DC 11.1V  2600mAh(built-in)

¤Input voltage:DC13.5V  1A

Product Size :180*143*50mm
