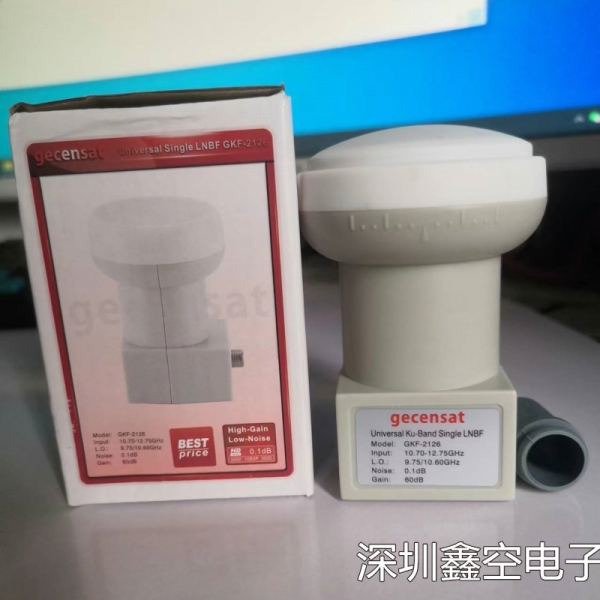

gecensat GKF-2126 Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB Satellite TV Receiver Lnb Universal Ku Lnb 1 Output LNBF

gecensat GKF-2126 Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB Satellite TV Receiver Lnb Universal Ku Lnb 1 Output LNBF

  • 商品编号:G62FF4927C5FED
  • 商品重量:100.000 克(g)
  • 货  号:G62FF4927C5FED
  • 市场价: ¥30.00
  • 销售价: ¥15.00
  • 节省: ¥15.00
购买数量:
  (库存1000)
app hook
gecensat GKF-2126 Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB Satellite TV Receiver Lnb Universal Ku Lnb 1 Output LNBF

Description:

IN PUT:10.7-12.75GHZ

L.O.:9.75/10.6GHZ

NOISE:0.3DB

GAIN:60DB

Specifications:


Low Band:10.70~11.70GHz

High Band:11.70~12.75GHz


L.O. Phase Noise


-50dBc/Hz@1KHz

-75dBc/Hz@10KHz

-95dBc/Hz@100KHz


Output Frequency Range


Low Band:950~1950MHz

High Band:1100~2150MHz


Image Rejection:40dB(Min.)


Noise Figure


Low Band:0.6dB(Typ.)

High Band:0.6dB(Typ.)


Output VSWR


2.0:1(Max.)


Conversion Gain


60dB(Typ.)


Output Power


0dBm (Min.)(at 1dB gain

compression)


Gain Flatness


±0.5dB/26MHz


Connector Type


75Ω Female Connector


Cross POL. Isolation


25dB(Typ.)


DC Current Consumption


80mA(Typ.)


L.O. Frequency


Low Band:9.75GHz

High Band:10.60GHz


Low/High Band Switching


Low Band:0Hz

High Band:22KHz±4KHz


L.O. Frequency Stability


±1.0MHz (Max.)@+25℃

±2.0 MHz (Max.)@-30℃~+70℃


POL. Switching Voltage


10.5~14.0V @VP

16.0~20.0V @H P


Operating Temperature


-30℃~+70℃





Package Include:


1* satellite receiver
