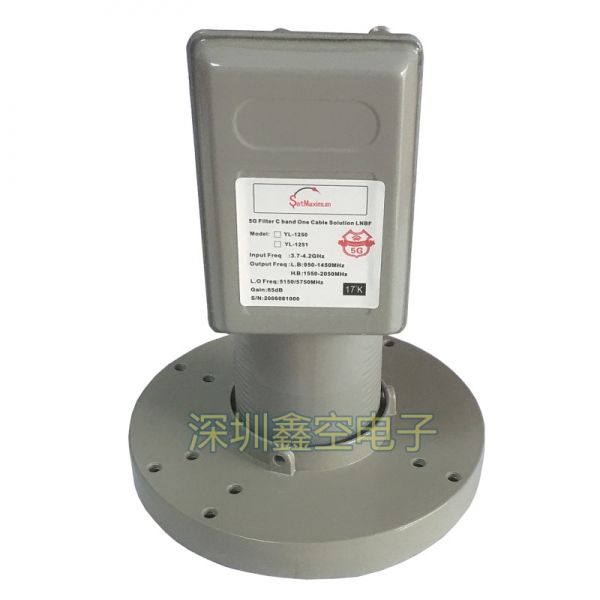

SatMaximum 5G Filter C band One Cable Solutlon LNBF
Technical indicators：
Inputfrequency (GHz)： 3.7 – 4.2 GHz。
L.O.frequency (GHz)： 5150/5750MHz。
Outputfrequency (MHz) ：950 – 1450 MHz。
L.O.stability： ±250 kHz。
Noisetemperature ：15 K typ., 30 K max.。
Phasenoise ： -65 dBc/Hz @ 1 kHz offset。
-80 dBc/Hz @10 kHz offset。
-95 dBc/Hz @100 kHz offset。
比InputVSWR & Output VSWR： 2.3:1。
Conversiongain ： 65 dB typical。
OutputP1dB 10 dBm。
Currentdrain ：250 mA。
InputWaveguide CPR： 229G。
Temperature Range-40°C to +60°C。
